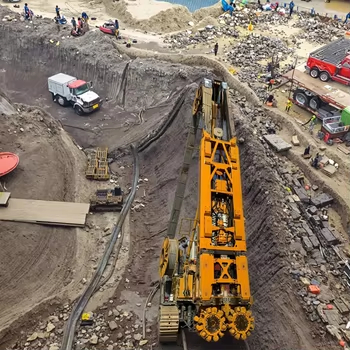

Underground Trench Cutter Machine Diaphragm Wall Trench Cutter Milling Machine
  • Underground Trench Cutter Machine Diaphragm Wall Trench Cutter Milling Machine
  • Underground Trench Cutter Machine Diaphragm Wall Trench Cutter Milling Machine
Underground Trench Cutter Machine Diaphragm Wall Trench Cutter Milling Machine

Underground Trench Cutter Machine Diaphragm Wall Trench Cutter Milling Machine

Lugar de origem CHINA
Marca APIE
Número do modelo Série do SC
Detalhes do produto
Nome do produto:
Cortador de trincheiras
Energia instalada:
571 kW
Torque do cortador:
100 kNm
Profundidade máxima:
55 m
Peso máximo de transporte:
29.6 m
Altura do computador central:
219/258/260/288/300mm 8'10'12'
Modelo de porta-facas:
SH30/40
Destacar:

Underground Trench Cutter Machine

,

Diaphragm Wall Trench Cutter Milling Machine

,

Milling Trench Cutter Machine

Termos do pagamento & do transporte
Quantidade de ordem mínima
1 unidade
Preço
US$ 400000-550000 Unit
Detalhes da embalagem
Embalagem nua
Tempo de entrega
30 dias
Termos de pagamento
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Habilidade da fonte
10 unidades por mês
Descrição do produto



Underground Trench Cutter Machine Diaphragm Wall Trench Cutter Milling Machine 0



Advantages of Spherical Hobs in Hydromill Cutting

  1. Cost Efficiency: Utilizing spherical hobs significantly reduces costs associated with hydromill cutting in hard rock, enabling quicker project completion.

  2. Simplified Operations: There’s no need for precutting holes, which streamlines the required machinery and construction processes.

  3. Extended Operation Time: The hob-tooth hydromill wheel allows for uninterrupted operation for up to 100 hours, minimizing the frequency of hydromill lifts and extending overall project timelines while lowering labor requirements.

  4. Lower Maintenance Requirements: The hydromill module runs efficiently with reduced strain on the gearbox, leading to decreased maintenance time and expenses.

  5. Minimal Environmental Disruption: This technology produces minimal ground disturbance, making it suitable for projects near existing structures.

  6. Enhanced Cutting Deflection: The design improves deflection capabilities during hydromill cutting in difficult rock formations.

  7. High Precision: Trenches can be maintained with vertical alignment accuracy of up to 1‰, ensuring superior quality in results.

  8. Fuel Savings: The system offers over 20% in fuel savings, averaging 73L/h with a CAT C18 engine, promoting energy efficiency and environmental sustainability.

Underground Trench Cutter Machine Diaphragm Wall Trench Cutter Milling Machine 1



Overview of Cutting Wheels: Gearbox and Spherical Hob

To achieve optimal performance, a spherical hob must produce sufficient downforce, with each hob requiring at least 5 tons. In a wheel measuring 1200mm in thickness, there are a total of 54 hobs. Typically, about one-third, or approximately 18 hobs, actively participate in rock breaking, resulting in a required total pressure of no less than 90 tons. Consequently, each gearbox must be capable of supporting 45 tons of pressure, underscoring the importance of strong radial load-bearing capabilities.

The hob acts as a rolling rock-breaker, which means it operates without the need for high torque. For safety, the gearbox is rated for a torque of 150 kNm. Its output end features a tapered hexagonal design, allowing for quick and easy installation and removal of the cutting wheel.

The spherical hob employs two main types of fixed cutting tools: side hydromills and main cutting hydromills. Each trajectory line consists of three side hydromills and two main cutting hydromills. The design also includes a flapper tooth in a roller structure, which is both straightforward and effective. This innovative configuration offers enhanced force resistance compared to traditional machines, where the heavier flapper tooth structure often results in rapid wear of wear blocks and guide rings.



Underground Trench Cutter Machine Diaphragm Wall Trench Cutter Milling Machine 2





Module Parameter with SC-135



Underground Trench Cutter Machine Diaphragm Wall Trench Cutter Milling Machine 3

Parameter Specification
Total hydromill Module Weight 47–60ton
Wall thickness 1000–2000mm
Maximum Torque of Gearbox 180KNm
Gearbox Output Speed 0–20rpm
Maximum Pressing Force 60 ton
Maximum Ground Pressure 120 ton



Module Parameters with XCMG 120



Underground Trench Cutter Machine Diaphragm Wall Trench Cutter Milling Machine 4



Parameter Specification
Total hydromill Module Weight 47–60ton
Wall thickness 1000–2000mm
Maximum Torque of Gearbox 180KNm
Gearbox Output Speed 0–20rpm
Maximum Pressing Force 60 ton
Maximum Ground Pressure 120 ton
